Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaner with PLC Distributed Control

Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaner With PLC Distributed Control

Introduce
The fully automatic nozzle cleaning machine is suitable for cleaning nozzles of various specifications. It adopts the latest cleaning technology and only uses pure water and air source to solve the problem of nozzle maintenance, which accounts for 32% of the SMT adsorption rate and placement rate. problem.

HS-800 nozzle cleaning machine can automatically complete the cleaning and drying process, it adopts multiple spraying nozzles spraying cleaning method, uses fluid mechanics to shred water, produces very strong water mist, forms powerful kinetic energy at the speed of sound and sprays on the nozzle, forming a continuous shape above the nozzle, clean the dirty on the surface and inside of the nozzles, it mainly used for cleaning small components, such as 0603,0402,0201,01005 and high precision nozzles.

SMT Nozzle Cleaner Equipment principles and uses

By breaking up the water, extremely fine water mist is produced, which is sprayed onto the suction nozzle with powerful kinetic energy at supersonic speed, forming a continuous energy field above the suction nozzle to be cleaned, crushing dirt on the surface and inside. Independent cleaning, no damage to the suction nozzle. Using this device for daily nozzle maintenance and cleaning work can achieve a thorough cleaning effect in a safe state. It reduces the scrapping cost of nozzles caused by traditional cleaning methods, extends the life of nozzles, and plays a vital role in the maintenance of the placement machine to ensure that the placement machine operates in a better condition.

Main functions and features

1. Completely solve the dirt and impurities that are difficult to clean with ultrasonic waves;
2. It will not be cleaned due to the smaller and smaller suction nozzle hole diameter;
3. More thorough cleaning directly extends the life of the nozzle;
4. No damage to the nozzle surface coating and reflective plate;
5. Use environmentally friendly deionized water or distilled water for cleaning;
6. Automatic continuous cleaning and automatic drying;
7. The operation is simpler and more convenient;
8. Suitable for various placement machines.
9. Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving

Specification

Machine size

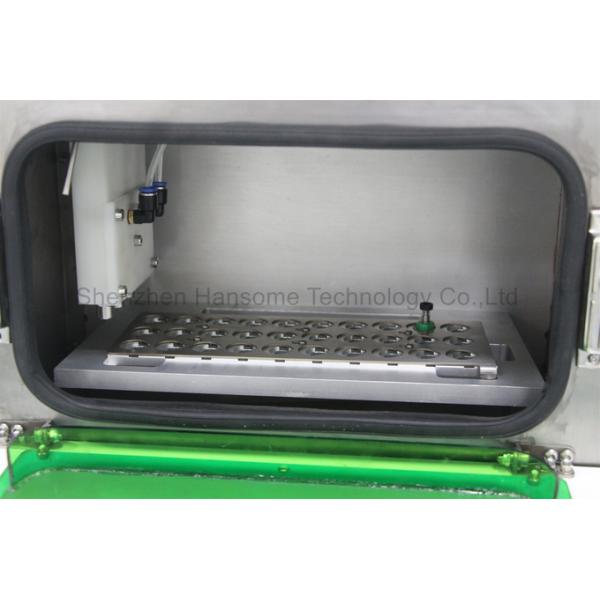

Nozzle Tray

Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaner with PLC Distributed Control Images
