PCB Handling Equipment with Automatic Magazine Change-over and PLC Control System
Features
1, Stainless metarials, durable.
2, PLC Control system.
3, 3 magazines loading capacity.
4, Panasonic PLC
5, Selective pitch settings
6, Automatic magazine change-over.
7, Special designed gas circuit for transmit PCBs smoothly and stably.
8, Tower light display for machine status
9, SMEMA Signal.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A |
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | 3 pcs |
| Air supply | 0.4~0.6Mpa |
| Transport height | 900±20(mm) standard |
| Loading time | 6 sec |
| Magazine change over time | around 20 secs |
| Transport direction | L to R, or R to L,optional |
| PCB thickness | Min 0.4mm |
| Step pitch selection | 1-4(10mm step pitchs) |
| Communication | SMEMA |
| Machine dimension | 1330*765*1250 | 1920*845*1250 | 2160*910*1250 | 2160*975*1250 |
| Weight | Approx 230kg | Approx 260kg | Approx 290kg | Approx 320kg |
Shenzhen Hansome Technology Co.,Ltd is a professional SMT board handling equipment (Loader,Unloader,Buffer Conveyor,Soldering Machine,Screw Fastening Machine,PCB Depaneling Machine,etc)manufacturer.Our products have been exported to Europe,America,East Asia,South Asia, the middle East Asia, Africaareas and have good feedbacks.There are many customers who repurchase fromus.
Our company is committed to establishing longterm friendly cooperative relationswith domestic and foreign clients on the basis of mutual benefit.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
|
|

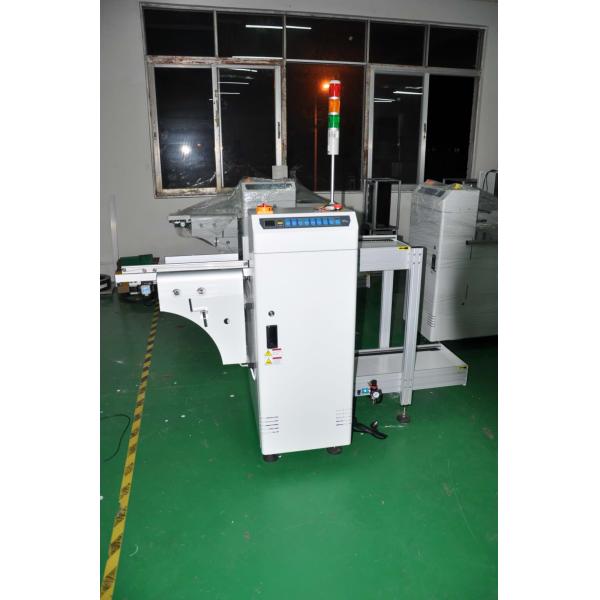

PCB Handling Equipment with Automatic Magazine Change-over and PLC Control System Images
|
