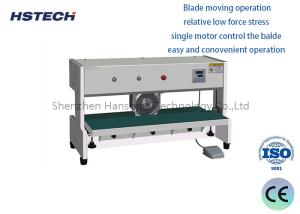

Blade Moving PCB Separator, HS-300, 400mm Length, Single Motor Control
Introduction
This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.
Features
1. This machine can be used to cut various V-shaped groove plates.
2. Durable blade design, the blade can be shaped at least twice.
3. The height of the circular blade can be adjusted to accommodate different types of PCBs with components of different heights.
4. The blade movement operation has relatively low stress, and the blade is controlled by a single motor, making the operation simple and convenient.
5. Equipped with sensing function, if the operator touches the space where the lid moves, the machine will stop running.
6. Safe, equipped with dual protection devices, there is no need to worry about safety production issues.
7. Durable, using high-quality and good material blades.
Specification
| Model |
HS-300 |
| Voltage |
110V/220V(optional) |
| Power |
100W |
| Efficient cutting length |
5-360mm |
| Blade size |
Circular blade φ125*3mm, Linear blade 360*45*6mm |
| Blade material |
Import high quality high speed steel tool |
| Separating speed |
300mm/s |
| V-cut thickness |
1/3 of the board |
| Separating width |
Best 1-200mm |
| Machine size |
620*320*450mm |
| Weight |
50kg |
